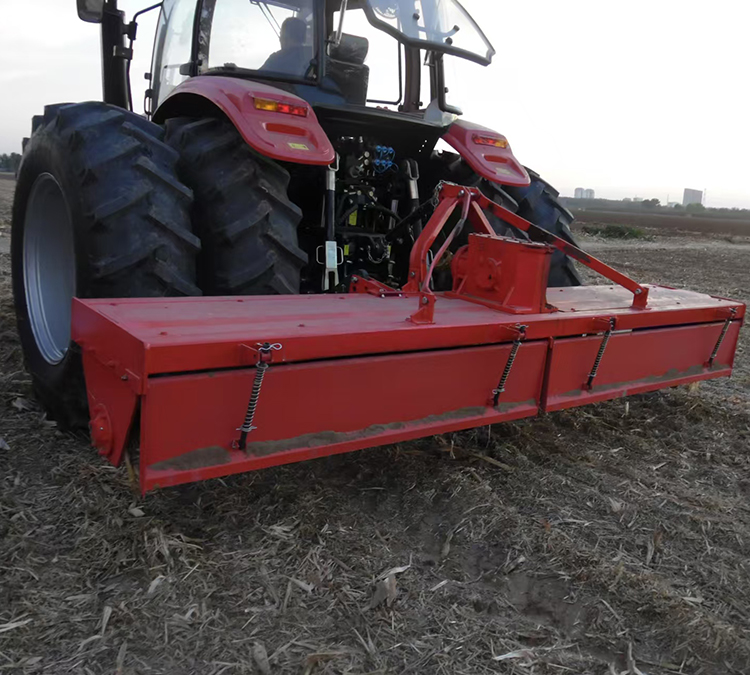

CF-RT Series Rotary Tillers: Precision Soil Preparation for Every Field
Key Features:
✅ Three-Point Suspension System: Effortlessly integrates with tractors (Cat I-III) for quick setup.
✅ Dense Interlaced Blades: Ensures 360° soil coverage with no unplowed strips.
✅ Dual Terrain Adaptability: Works in dry fields (sandy/rocky soil) and paddy fields (muddy conditions).
✅ Cost Efficiency: Reduces fuel consumption by 15% compared to conventional tillers.
Technical Specs Table:
|
Model
|
Unit | CF-RT100 | CF-RT125 | CF-RT140 | CF-RT150 | CF-RT160 | CF-RT180 | CF-RT200 | CF-RT220 | CF-RT250 | CF-RT300 |
| Working Width | mm | 1000 | 1250 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 | 2500 | 3000 |
| Working Depth | mm | 120-180 | |||||||||
| PTO Rotation Speed | RPM | 540/720 | |||||||||
| PTO shaft Spline | / | 6 spline/8 Spline | |||||||||
| Blade Q'ty | pcs | 18 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 58 | 70 |
| Blade Type | / | IT225 | IT245 | ||||||||
| Tiller Weight | kg | 190 | 200 | 210 | 220 | 240 | 370 | 400 | 420 | 470 | 500 |
|
Matchable Tractor Power |
HP | 12 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| Linkage | / | Mounted Cat I | Mounted Cat Ⅱ | ||||||||
Applications:
· Rice paddies in Southeast Asia
· Dryland crops (wheat, maize) in Africa
· Soil rehabilitation in rocky terrains
