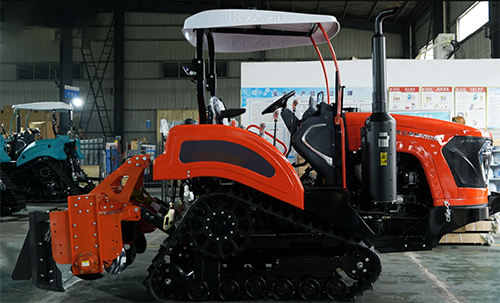

The CF-802(C) is CF specially designed for tobacco farmers for tobacco cultivation and various agricultural tasks. This high-efficiency, multifunctional riding tractor integrates modern agricultural technology, offering exceptional power performance, ease of operation, and outstanding terrain adaptability.In order to meet user’s more heavier duty requests, CF-802 also upgraded its structure and use wider rubber track to adopt paddy field work.
- **Powerful Output** Utilizing direct engine connection technology, the tractor delivers strong and stable power output, ensuring efficient operation across diverse field conditions.
- **Flexible Maneuverability** With a steering wheel control and dual power flow differential steering, the CF-802(C) can effortlessly execute a 360° turn in place, providing enhanced flexibility and convenience during operation.
- **Efficient Transmission Design** Featuring an 8-speed forward and reverse transmission, the gear shifting is smooth, making driving easier and significantly improving overall work efficiency.
- **Exceptional Terrain Performance** The high-clearance chassis design enhances the tractor's ability to navigate easily over field ridges and adapt to complex terrains.
- **Reliable Track System** Equipped with wide rubber tracks, the tractor offers strong resistance to sinking and slipping, ensuring stability on muddy or slippery surfaces.
-**Versatile Agricultural Implements** The CF-802 (C) is compatible with a variety of agricultural tools, meeting the operational needs of different seasons and crops, allowing for multifunctional use.
**Main Technical Parameters**
| 型号Model | / | CF-802C |
| 名称Product Name | / | 80HP Compact Crawler Tractor |
|
外廓尺寸(长X宽X高）
Product Dimension(LXWXH)
|
mm | 3480 x 1600 x 2700 |
| 最小使用质量Product Weight | kg | 2640 |
| 最小离地间隙 Ground Clearance | mm | 450 |
| 履带 Rubber Track Spec | Pitch×Pcs×Width | 90 x 52 x 350 |
| 轨距Track Gauge | mm | 1100 |
| 发动机 Engine | / | YTO YTN3090-44T |
| 起动方式 Start Mode | / | Electric starter |
| 进气方式 | / | Normally aspirated |
| 配套动力标定功率 Rated Power | kw | 59.66 |
| 配套动力标定转速 Rated Speed | r/min | 2300 |
| 变速箱结构 Drive system | / |
Mechanical Gear shift
8 forward + 8 Reverse
|
| 动力输出轴转数 Power Output Speed | r/min | 540/720 |
| 转向系型式 Steering Mode | / | Planetary Differenitial Steering |
|
转向系转向操纵机构
Steering Operation Method
|
/ | Steering Wheel |
| 驾驶室 Cabin | / | Optional |
| 地表压力比Pressure Rate | Kpa | 26 |
